Parify Zigbee Dimmable Driver 150W 24V

Parify Zigbee Dimmable Driver 150W 24V

A 150W Dimmable Constant Voltage LED Driver with 2-channel 24VDC output. It is designed with a 220-240VAC input. The power factor of the driver can be over 0.9, and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The constant voltage driver is designed with ZigBee 3.0 control interface and can pair to a ZigBee network and be controlled from your controller or hub interface. The driver is compatible with a universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.

The ZigBee device is based on ZigBee 3.0. It can be linked to and controlled by max. 30 ZigBee remotes that support ZigBee Light Link through TouchLink. It also supports the new ZigBee Green Power feature, and can bind to and be controlled by max. 20 ZigBee Green Power remotes directly without ZigBee hub or gateway.

Specifications

• Input Voltage: 220-240VAC
• Output Voltage: 24VDC
• Output Power: 150W
• Output Current: 6.25A

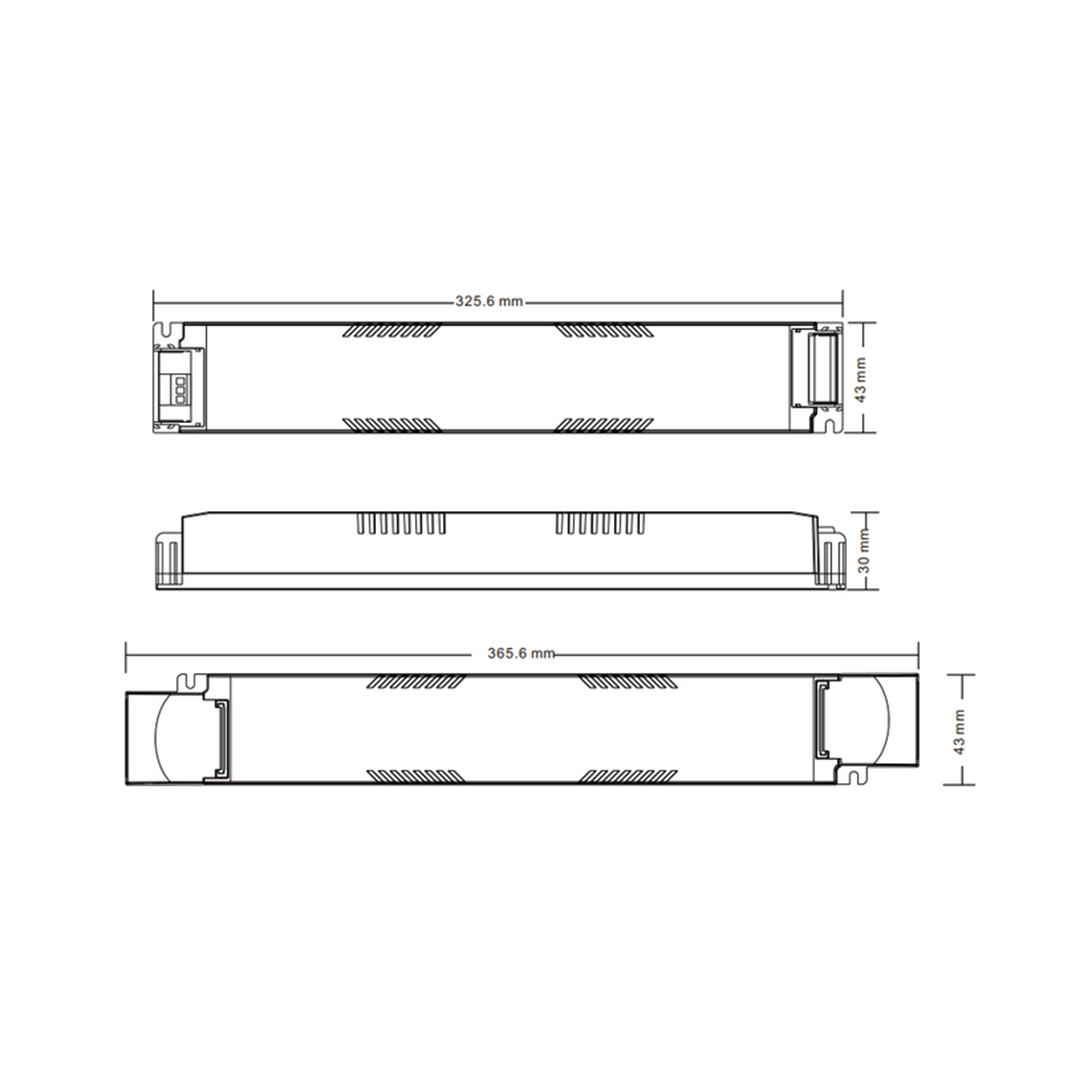

• Dimension (mm) 365 x 43 x 30

Key Features

• Dimmable LED driver, max. output power 150W total
• 2-channel DC 24V constant voltage output
• High power factor and efficiency
• Deep and smooth dimming to 0.1%, flicker-free
• Standby power consumption is less than 0.5W, and meets the latest ERP requirements
• Enables control of ON/OFF and light intensity of LED lights
• ZigBee end device that supports TouchLink commissioning
• Can directly pair to a compatible ZigBee remote via TouchLink
• Supports ZigBee Green Power and can bind up to 20 ZigBee Green Power switches
• Compatible with universal ZigBee gateway products
• Compatible with universal ZigBee remotes
• Waterproof grade: IP20, suitable for indoor LED lighting applications
• 3 years warranty
